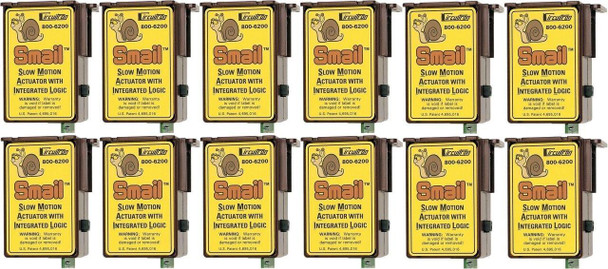

CIRCUITRON 800-6212 HO "SMAIL" SLOW MOTION ACTUATOR WITH INTEGRATED LOGIC (DCC DECODER EQUIPPED) 12 PACK Without Termial Blocks

If you want the termial blocks included order Circuitron 6212TB SNL S/M DCC TERM BLK 12PK

Smail (Slow Motion Actuator with Integrated Logic) features same size and mounting as the TORTOISE (sold separately). Compatible with all DCC systems that provide accessory address control. Two-wire connection to DCC bus with no external power necessary.

Features

• DCC decoder equipped
• Optional DC mode
• 3 Second throw
• Bulletproof stall motor design
• SPDT contacts
• Simple under-layout installation.
• Detailed installation instructions

The SMAIL™ is controlled by internal electronics manufactured by NCE Corporation. Utilizing an enhanced version of their proven Switch-It™ Stationary Decoder technology, the SMAIL™ is fully compatible with any DCC system that can provide accessory address control and/or signal control in either NMRA or Digitrax signal modes. The SMAIL™ can be used as a DCC Slow Motion Switch Machine in any scale and with all DCC system voltages. A simple programming procedure sets the address and advanced users have the ability to program individual CV’s (configuration variables).

Mounting, mechanical options and specifications are all the same as the TORTOISE™ and the SMAIL™ can be used with Circuitron’s Remote Mount (800-6100) and Remote Signal Activator (800-8100).

12 SMAILs per pack. Easy programming. May also be controlled with panel switches or detection circuits. Adjustable throw speed. Power up position user definable or will default to last used. Other specifications same as TORTOISE (800-6000).

Other ordering options

Circuitron 6212TB SNL S/M DCC TERM BLK 12PK
Circuitron 6312 SMAIL TERM BLOCK 12 PACK
Circuitron 6601 ZipZ Solderless Connection System
